Home/Suspension Geometry/Rear Panhard Riser Bracket
Suspension Geometry

Rear Panhard Riser Bracket

$140$140 – $230 depending on options
In stock

Workshop move underway, so some parts have extended lead times. Message us if you need it by a certain date.

Made in-houseDesigned & cut in our shed
Secure checkoutPowered by Shopify
Description

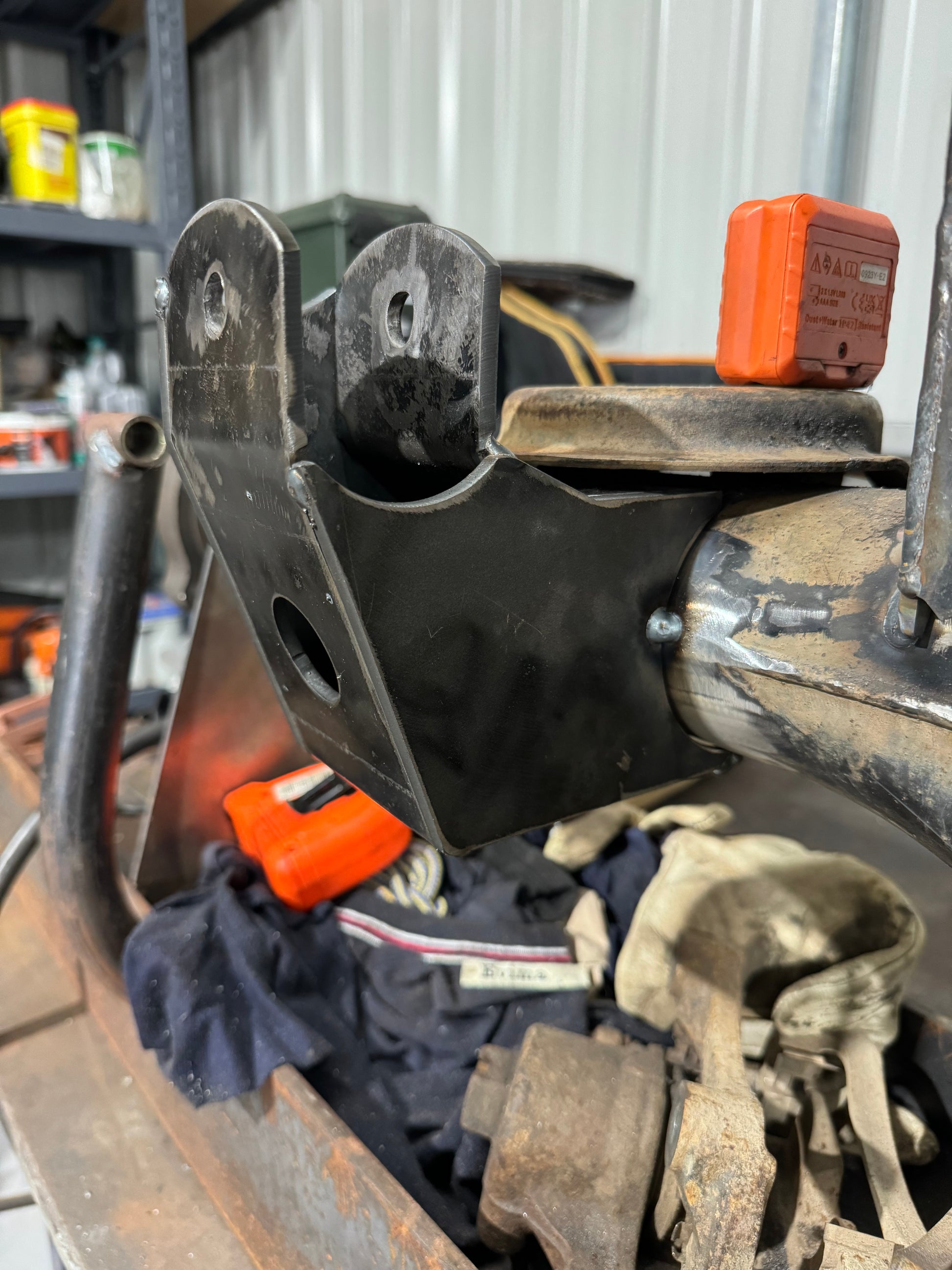

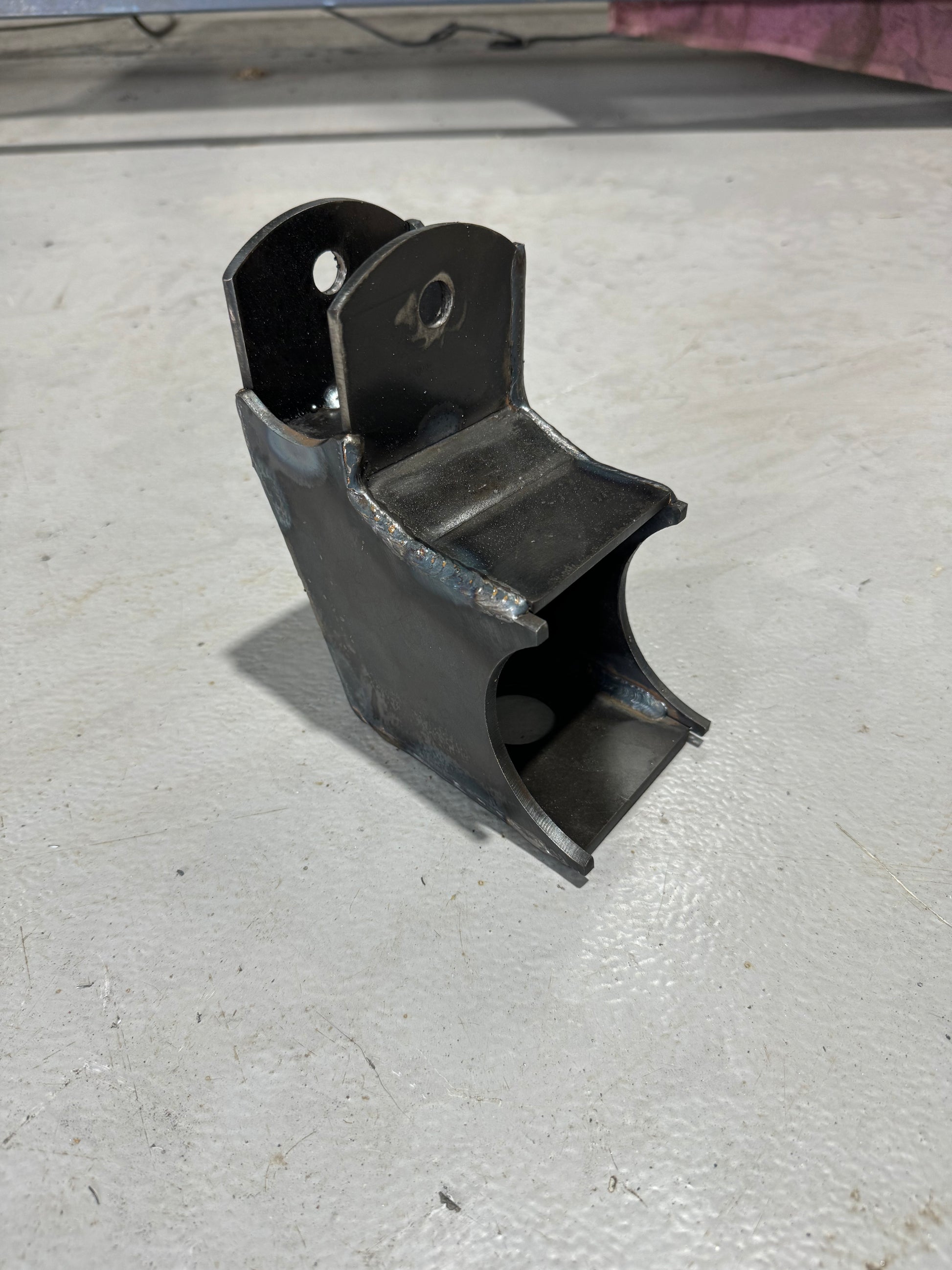

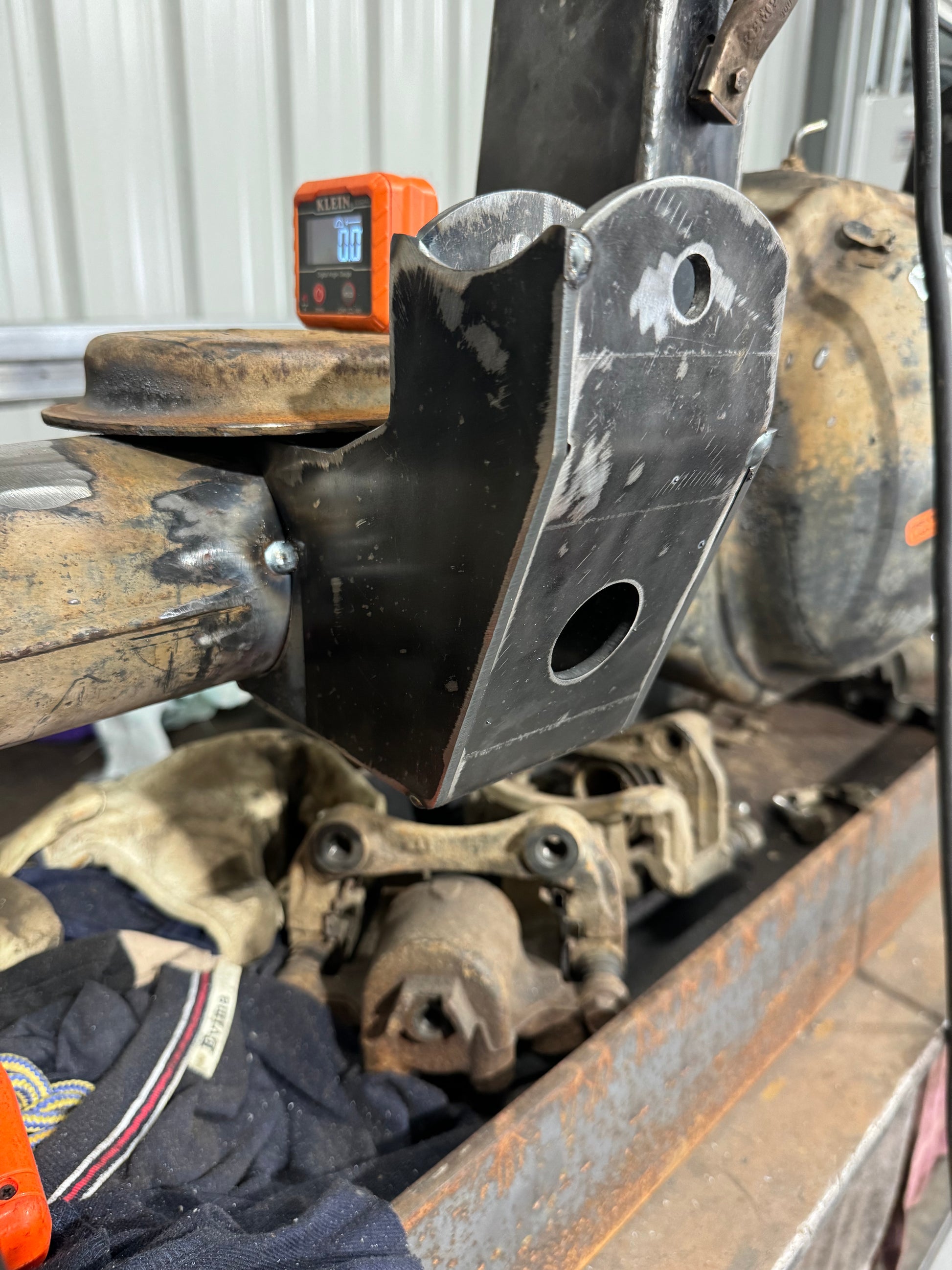

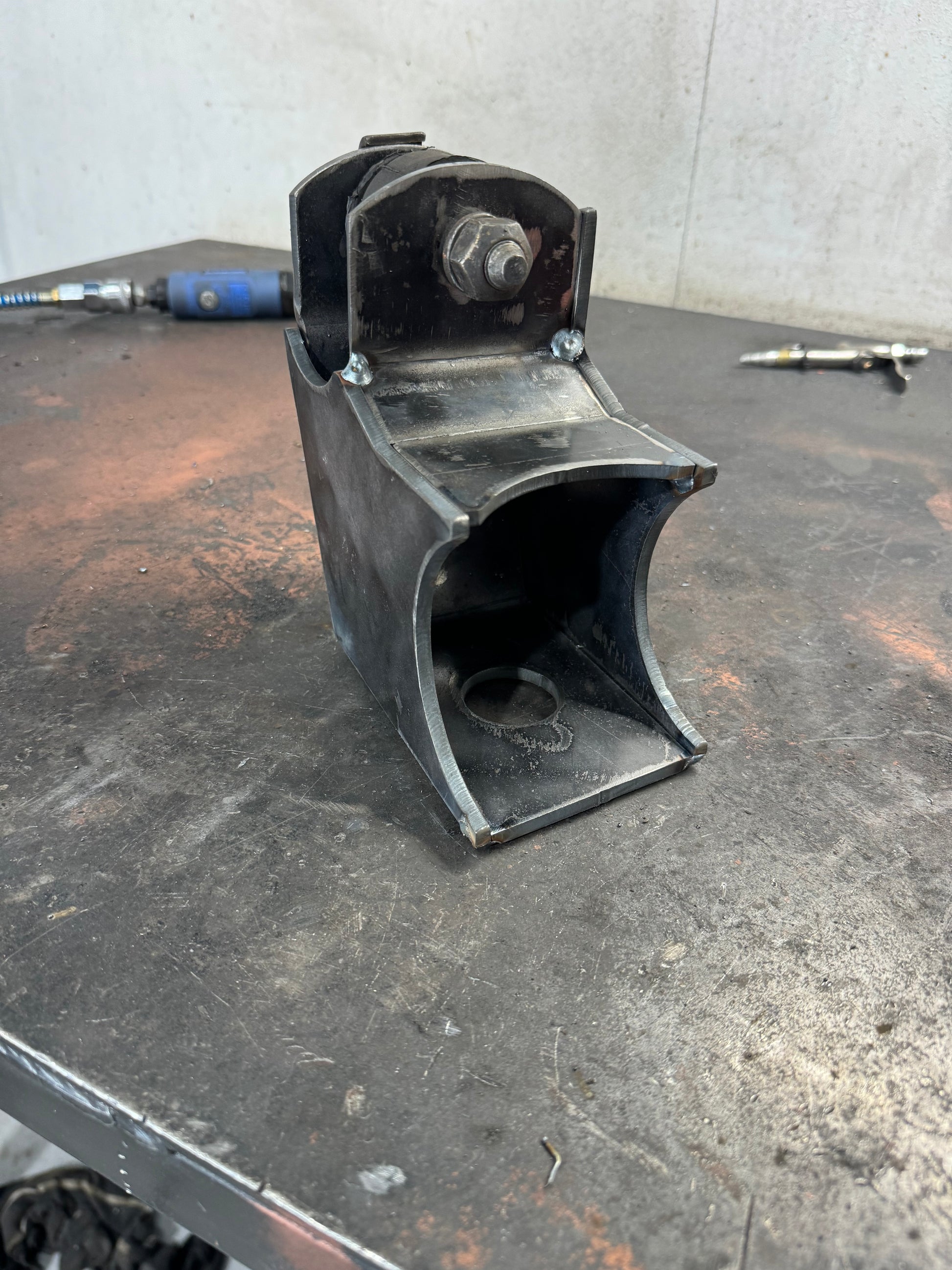

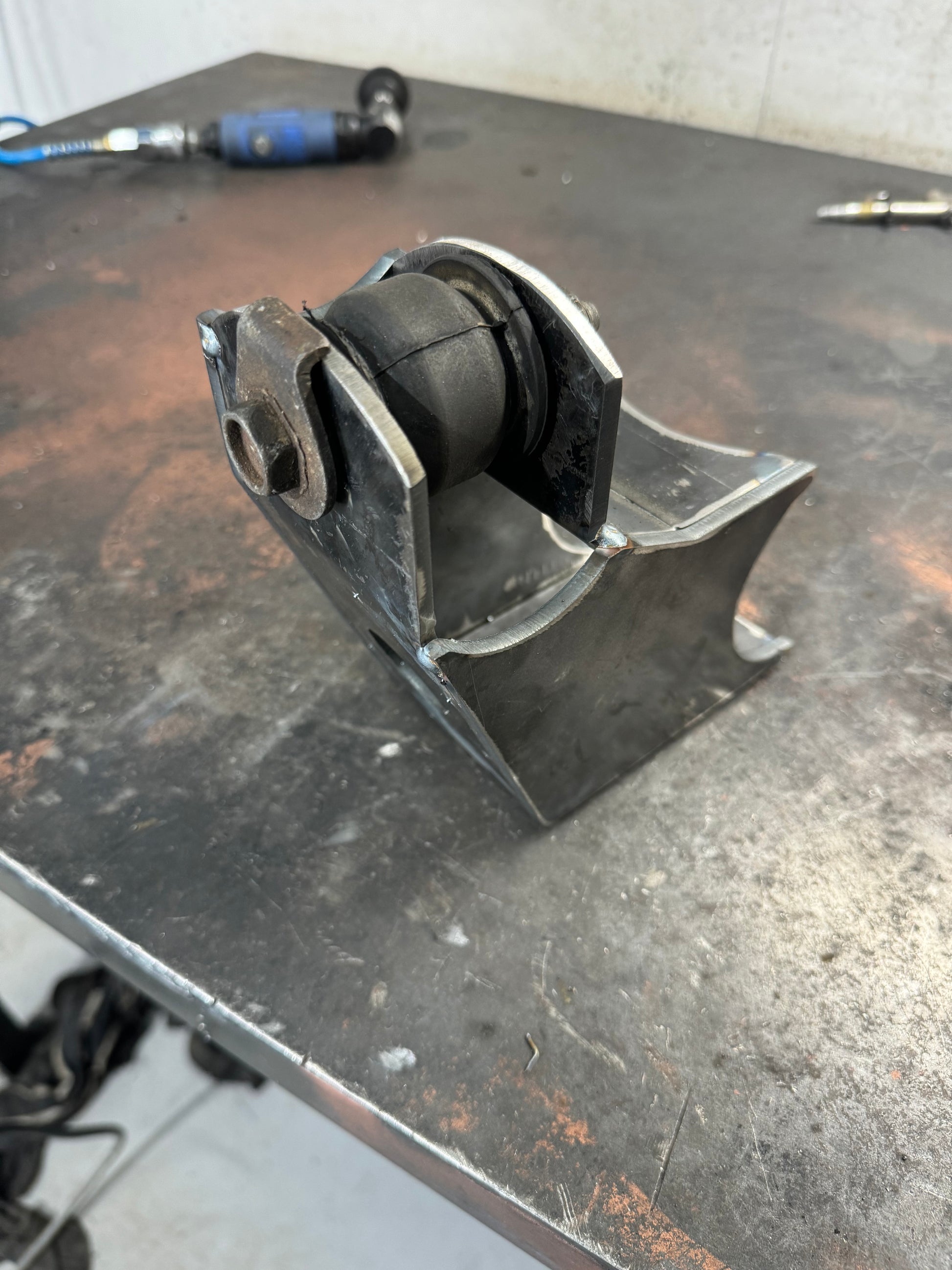

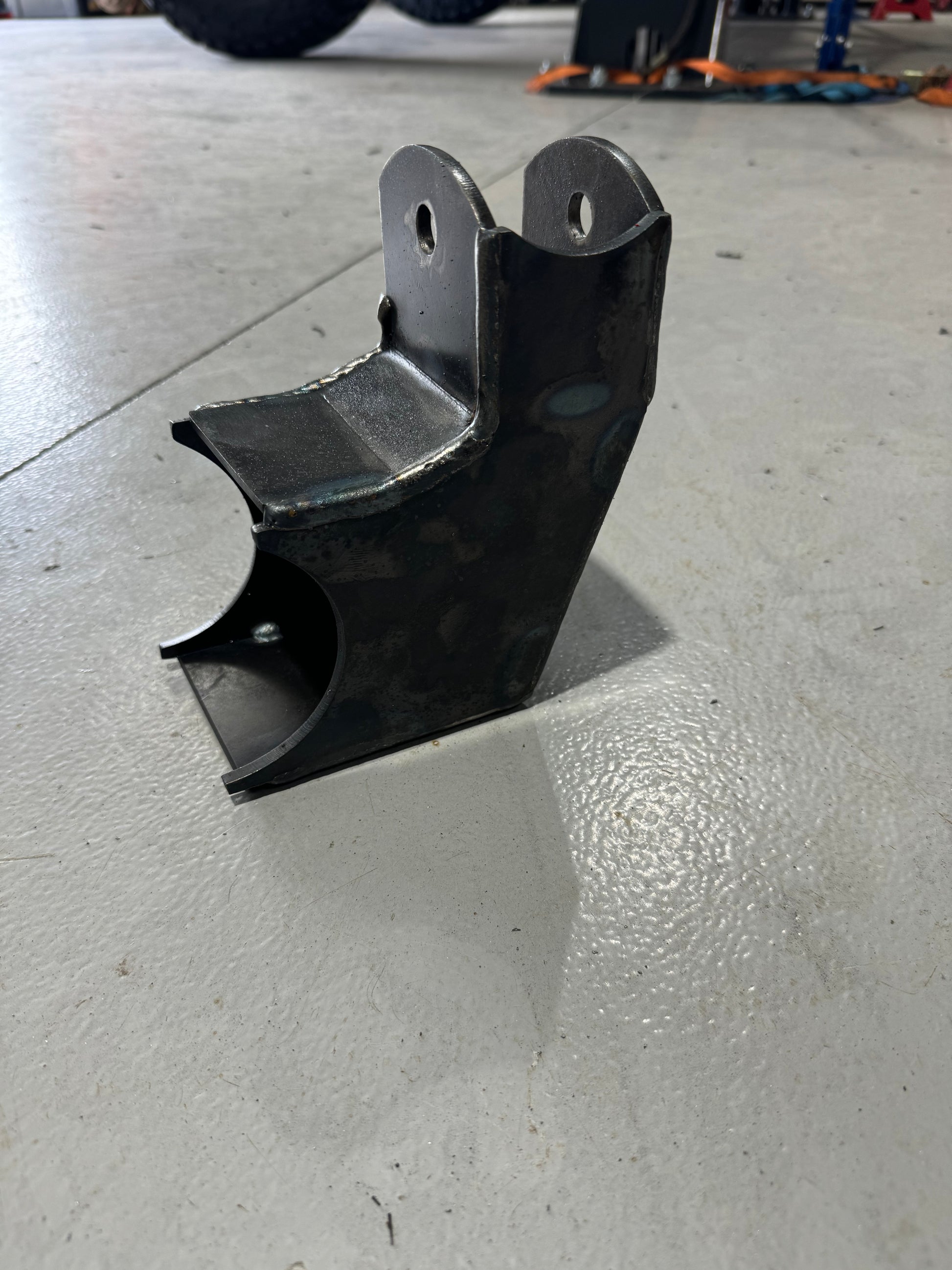

This is a rear panhard riser bracket to suit the Nissan rear diff (or any 90mm axle tube)


2-3 inch lift - raises the panhard 70mm

3-4 inch lift - raises the panhard 90mm


This raises the roll centre in the rear and also lets the panhard work in a more suitable part of the arc which minimises the amount of side travel the diff sees through suspension travel. It can be moved along the axle tube to be placed wherever suits, you will need to run the chassis end bush at the diff end, also comes with a bolt to suit.


It is tricky to fit the 90mm riser bracket without making a custom shorter panhard to get it out of the way of the factory shocks, with the 70mm riser bracket you will need to adjust your panhard as short as it will go but it’s also a little tight. If you’re raising your upper shock mounts you can creep them out slightly to give more room or if you’ve moved the shocks completely then you can run this bracket wherever suits on the axle tube.


Comes as a flat pack or there is limited amounts of welded option.


Built for off-road use only.

Materials

Components: Made from 5mm GR350

Shipping & Returns

Shipping & Returns Policy

Shipping
We aim to process and dispatch all orders within two to three weeks depending on stock levels. Shipping times vary depending on your location and chosen shipping method. Once your order is shipped, you will receive a tracking number to monitor its progress.

Please note that delivery times may be affected by holidays, weather conditions, or carrier delays beyond our control.

Flat pack or welded?

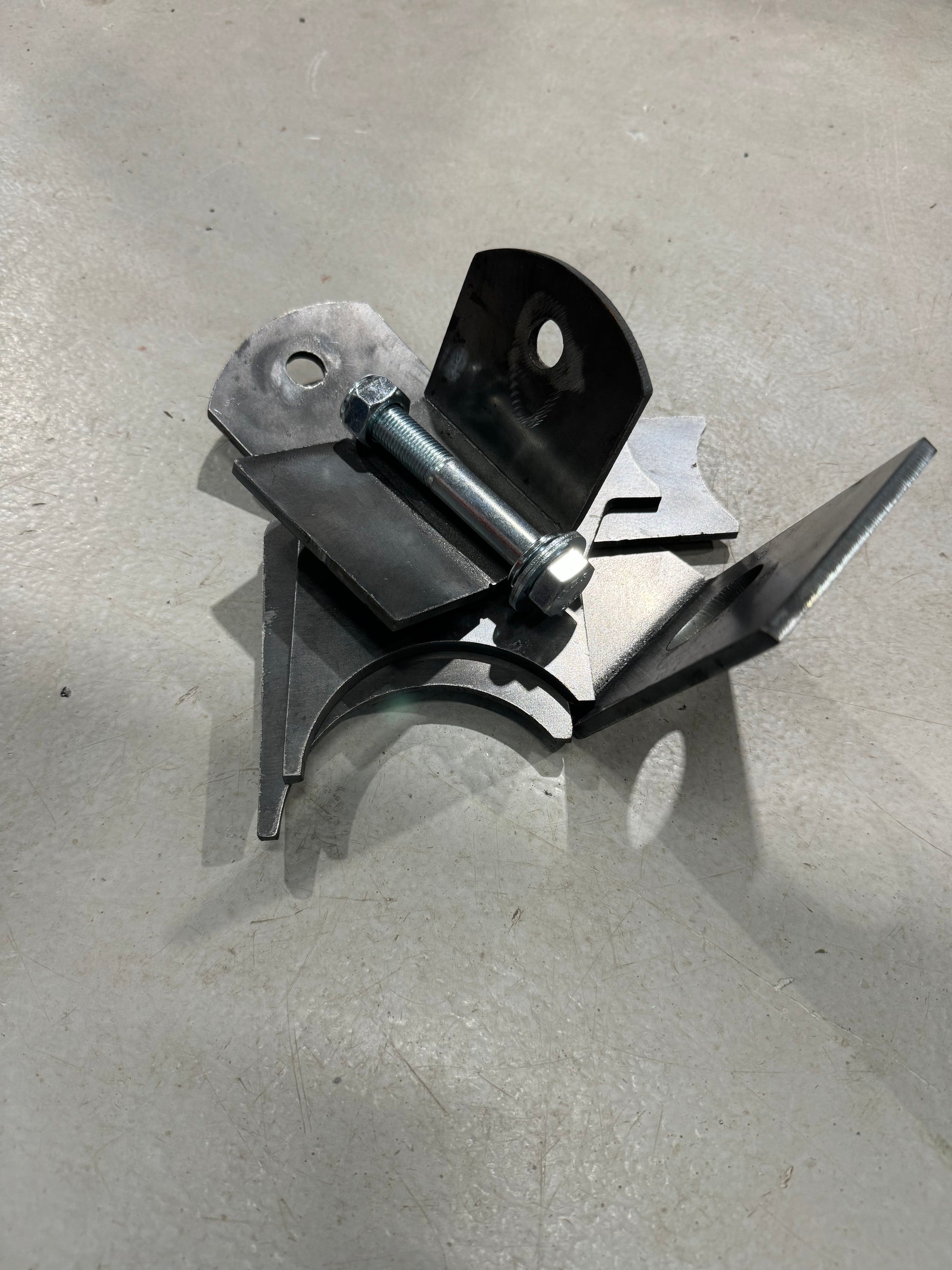

Pick "Yes" for welded and it's welded in our shed. Pick "No" and it comes as a flat pack of pre-cut steel, ready to tack and weld.
Returns & warranty

Every part is made to order, so we don't take change-of-mind returns. If a part has a defect in materials or workmanship, arrives damaged or isn't what you ordered, we'll repair, replace or refund it under Australian Consumer Law.

Read the full returns policy

Questions about fitment?

Not sure it suits your setup? Send us a message with your vehicle and lift and we'll point you in the right direction.
